Multidiameter™（多径）Roxtec RM ES 模块

打印

使用页面上的打印按钮，以调整优化打印布局。

Roxtec RM 模块深度为 60 毫米（2.362 英寸），可轻松适配不同尺寸的电缆和管道。 ES 型号可防止屏蔽环境中的高频辐射和传导 EMI/EMP。

  • 与相应的 Roxtec 组件搭配使用可形成一套完整的密封解决方案
RM 40 ES
RM 40 ES
RM 40 ES B
RM 40 ES B
RM 40 ES
RM 40 ES B

组件文章

毫米/千克 英寸/磅

RM 15 ES

  • External dimensions WxHxD (mm) 15 x 15 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 3 - 11
  • Weight (kg) 0.02
  • Art. No ERM0100151181
Remove from cart?

RM 15 ES B

  • External dimensions WxHxD (mm) 15 x 15 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 3 - 11
  • Weight (kg) 0.02
  • Art. No ERM1100151181
Remove from cart?

RM 15w40 ES

  • External dimensions WxHxD (mm) 40 x 15 x 60
  • Number of cables/pipes 3
  • For cable/pipe Ø (mm) 3.5 - 10.5
  • Weight (kg) 0.05
  • Art. No ERM0115401181
Remove from cart?

RM 15w40 ES B

  • External dimensions WxHxD (mm) 40 x 15 x 60
  • Number of cables/pipes 3
  • For cable/pipe Ø (mm) 3.5 - 10.5
  • Weight (kg) 0.05
  • Art. No ERM1115401181
Remove from cart?

RM 20 ES

  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 4 - 14.5
  • Weight (kg) 0.04
  • Art. No ERM0100201181
Remove from cart?

RM 20 ES B

  • External dimensions WxHxD (mm) 20 x 20 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 4 - 14.5
  • Weight (kg) 0.04
  • Art. No ERM1100201181
Remove from cart?

RM 20w40 ES

  • External dimensions WxHxD (mm) 40 x 20 x 60
  • Number of cables/pipes 2
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • Weight (kg) 0.07
  • Art. No ERM0120401181
Remove from cart?

RM 20w40 ES B

  • External dimensions WxHxD (mm) 40 x 20 x 60
  • Number of cables/pipes 2
  • For cable/pipe Ø (mm) 3.5 - 16.5
  • Weight (kg) 0.07
  • Art. No ERM1120401181
Remove from cart?

RM 30 ES

  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 25
  • Weight (kg) 0.08
  • Art. No ERM0100301181
Remove from cart?

RM 30 ES B

  • External dimensions WxHxD (mm) 30 x 30 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 10 - 25
  • Weight (kg) 0.1
  • Art. No ERM1100301181
Remove from cart?

RM 40 10-32 ES

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • Weight (kg) 0.15
  • Art. No ERM0140101181
Remove from cart?

RM 40 10-32 ES B

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 9.5 - 32.5
  • Weight (kg) 0.15
  • Art. No ERM1140101181
Remove from cart?

RM 40 ES

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • Weight (kg) 0.15
  • Art. No ERM0100401181
Remove from cart?

RM 40 ES B

  • External dimensions WxHxD (mm) 40 x 40 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • Weight (kg) 0.15
  • Art. No ERM1100401181
Remove from cart?

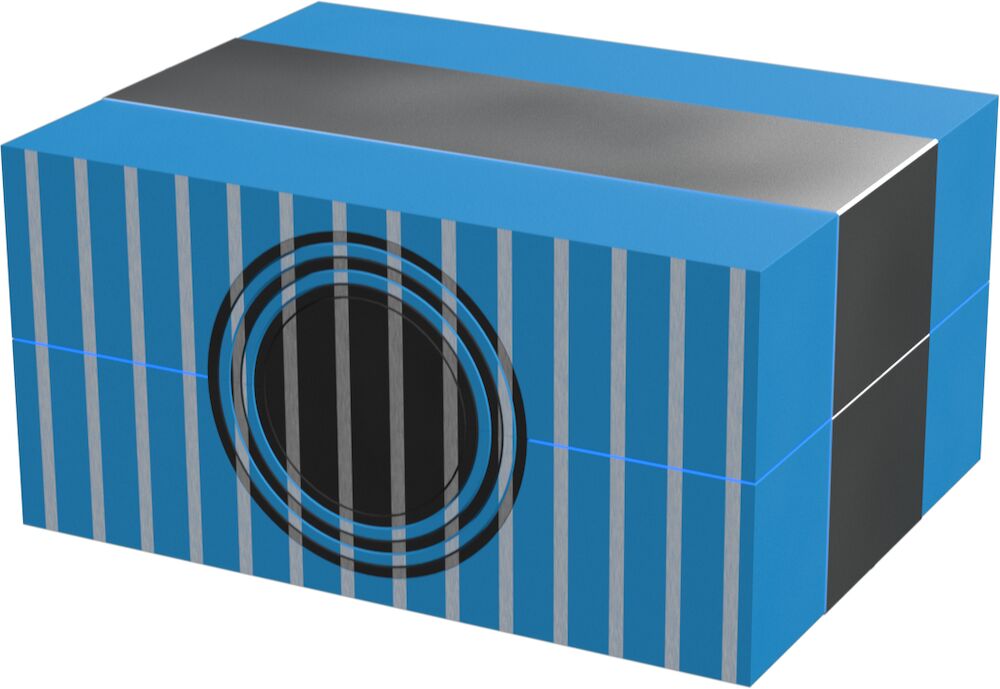

RM 40H80 ES

  • External dimensions WxHxD (mm) 40 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • Weight (kg) 0.28
  • Art. No 173582
Remove from cart?

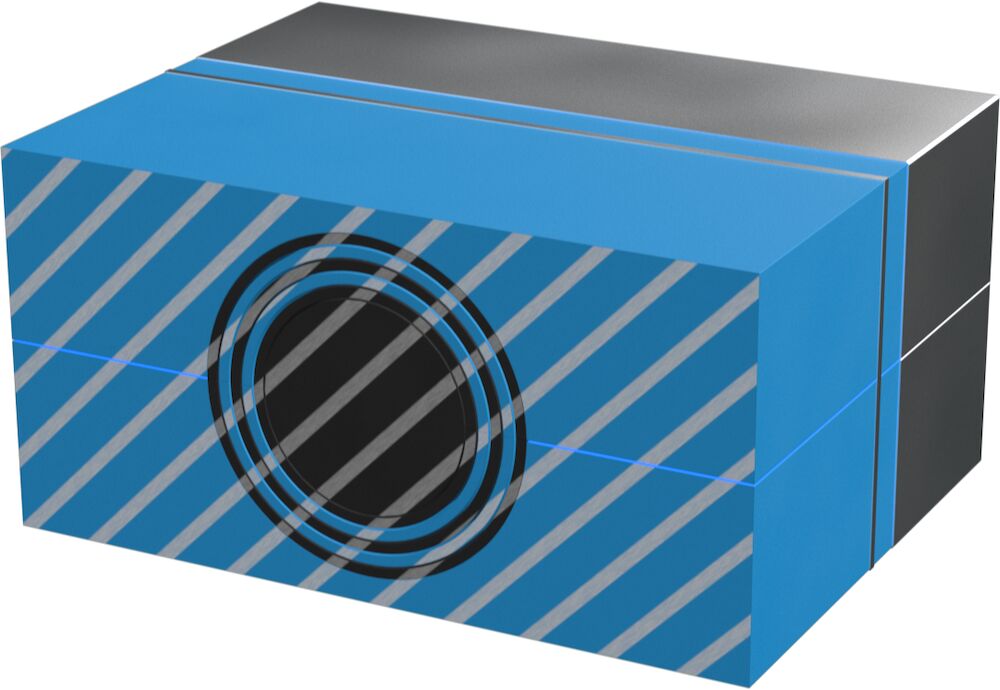

RM 40H80 ES B

  • External dimensions WxHxD (mm) 40 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 21.5 - 34.5
  • Weight (kg) 0.29
  • Art. No 173584
Remove from cart?

RM 60 24-54 ES

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 24 - 54
  • Weight (kg) 0.33
  • Art. No ERM0160201181
Remove from cart?

RM 60 24-54 ES B

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 24 - 54
  • Weight (kg) 0.33
  • Art. No ERM1160201181
Remove from cart?

RM 60 ES

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.35
  • Art. No ERM0100601181
Remove from cart?

RM 60 ES B

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.35
  • Art. No ERM1100601181
Remove from cart?

RM 80 ES

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.6
  • Art. No 110095
Remove from cart?

RM 80 ES B

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.6
  • Art. No 110098
Remove from cart?

RM 120 ES

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 1.3
  • Art. No ERM0101201181
Remove from cart?

RM 120 ES B

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 1.3
  • Art. No ERM1101201181
Remove from cart?

RM 60 ES B WOC

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.26
  • Art. No ERM1000601181
Remove from cart?

RM 60 ES WOC

  • External dimensions WxHxD (mm) 60 x 60 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 28 - 54
  • Weight (kg) 0.26
  • Art. No ERM0000601181
Remove from cart?

RM 80 ES B WOC

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.42
  • Art. No 110100
Remove from cart?

RM 80 ES WOC

  • External dimensions WxHxD (mm) 80 x 80 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 48 - 71
  • Weight (kg) 0.47
  • Art. No 110097
Remove from cart?

RM 120 ES B WOC

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 0.9
  • Art. No ERM1001201181
Remove from cart?

RM 120 ES WOC

  • External dimensions WxHxD (mm) 120 x 120 x 60
  • Number of cables/pipes 1
  • For cable/pipe Ø (mm) 67.5 - 99
  • Weight (kg) 0.9
  • Art. No ERM0001201181
Remove from cart?
标题 External dimensions WxHxD (mm) Number of cables/pipes For cable/pipe Ø (mm) Weight (kg) Art. No
RM 15 ES 15 x 15 x 60 1 3 - 11 0.02 ERM0100151181
RM 15 ES B 15 x 15 x 60 1 3 - 11 0.02 ERM1100151181
RM 15w40 ES 40 x 15 x 60 3 3.5 - 10.5 0.05 ERM0115401181
RM 15w40 ES B 40 x 15 x 60 3 3.5 - 10.5 0.05 ERM1115401181
RM 20 ES 20 x 20 x 60 1 4 - 14.5 0.04 ERM0100201181
RM 20 ES B 20 x 20 x 60 1 4 - 14.5 0.04 ERM1100201181
RM 20w40 ES 40 x 20 x 60 2 3.5 - 16.5 0.07 ERM0120401181
RM 20w40 ES B 40 x 20 x 60 2 3.5 - 16.5 0.07 ERM1120401181
RM 30 ES 30 x 30 x 60 1 10 - 25 0.08 ERM0100301181
RM 30 ES B 30 x 30 x 60 1 10 - 25 0.1 ERM1100301181
RM 40 10-32 ES 40 x 40 x 60 1 9.5 - 32.5 0.15 ERM0140101181
RM 40 10-32 ES B 40 x 40 x 60 1 9.5 - 32.5 0.15 ERM1140101181
RM 40 ES 40 x 40 x 60 1 21.5 - 34.5 0.15 ERM0100401181
RM 40 ES B 40 x 40 x 60 1 21.5 - 34.5 0.15 ERM1100401181
RM 40H80 ES 40 x 80 x 60 1 21.5 - 34.5 0.28 173582
RM 40H80 ES B 40 x 80 x 60 1 21.5 - 34.5 0.29 173584
RM 60 24-54 ES 60 x 60 x 60 1 24 - 54 0.33 ERM0160201181
RM 60 24-54 ES B 60 x 60 x 60 1 24 - 54 0.33 ERM1160201181
RM 60 ES 60 x 60 x 60 1 28 - 54 0.35 ERM0100601181
RM 60 ES B 60 x 60 x 60 1 28 - 54 0.35 ERM1100601181
RM 80 ES 80 x 80 x 60 1 48 - 71 0.6 110095
RM 80 ES B 80 x 80 x 60 1 48 - 71 0.6 110098
RM 120 ES 120 x 120 x 60 1 67.5 - 99 1.3 ERM0101201181
RM 120 ES B 120 x 120 x 60 1 67.5 - 99 1.3 ERM1101201181
RM 60 ES B WOC 60 x 60 x 60 1 28 - 54 0.26 ERM1000601181
RM 60 ES WOC 60 x 60 x 60 1 28 - 54 0.26 ERM0000601181
RM 80 ES B WOC 80 x 80 x 60 1 48 - 71 0.42 110100
RM 80 ES WOC 80 x 80 x 60 1 48 - 71 0.47 110097
RM 120 ES B WOC 120 x 120 x 60 1 67.5 - 99 0.9 ERM1001201181
RM 120 ES WOC 120 x 120 x 60 1 67.5 - 99 0.9 ERM0001201181
