Roxtec RM 模块深度为 60 毫米（2.362 英寸），可轻松适配不同尺寸的电缆和管道。 BG Ex 型号用于在有潜在爆炸危险的环境和危险场所对铠装电缆进行接地。
- 与相应的 Roxtec 组件搭配使用可形成一套完整的密封解决方案
安装说明
组件文章
RM 20 BG B Ex
- External dimensions WxHxD (mm) 20 x 20 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 4 - 14.5
- Weight (kg) 0.04
- Art. No 102515
RM 20 BG Ex
- External dimensions WxHxD (mm) 20 x 20 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 4 - 14.5
- Weight (kg) 0.04
- Art. No 102522
RM 20w40 BG B Ex
- External dimensions WxHxD (mm) 40 x 20 x 60
- Number of cables/pipes 2
- For cable/pipe Ø (mm) 3.5 - 16.5
- Weight (kg) 0.07
- Art. No 102516
RM 20w40 BG Ex
- External dimensions WxHxD (mm) 40 x 20 x 60
- Number of cables/pipes 2
- For cable/pipe Ø (mm) 3.5 - 16.5
- Weight (kg) 0.08
- Art. No 102523
RM 30 BG B Ex
- External dimensions WxHxD (mm) 30 x 30 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.08
- Art. No 102517
RM 30 BG Ex
- External dimensions WxHxD (mm) 30 x 30 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 25
- Weight (kg) 0.08
- Art. No 102524
RM 40 BG B Ex
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.14
- Art. No 102526
RM 40 10-32 BG B Ex
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 9.5 - 32.5
- Weight (kg) 0.15
- Art. No 102518
RM 40 BG Ex
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 21.5 - 34.5
- Weight (kg) 0.14
- Art. No 102527

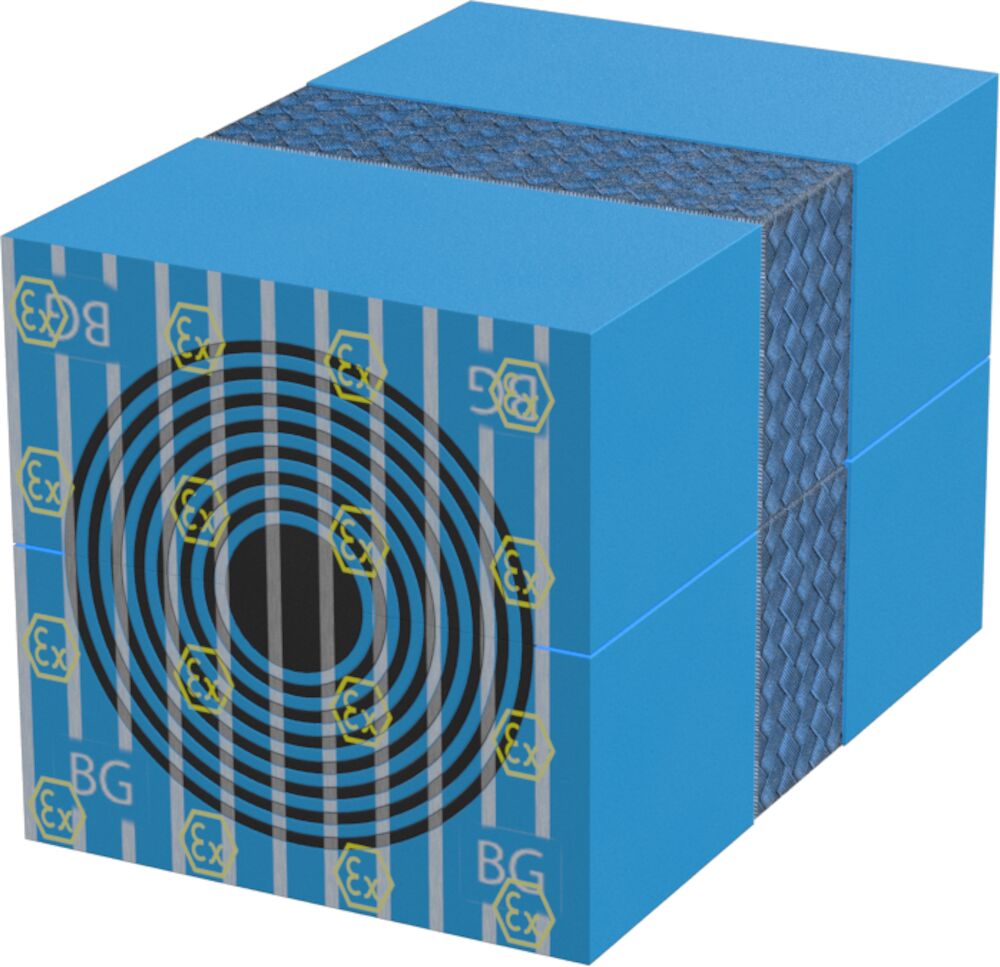

RM 40 10-32 BG Ex
- External dimensions WxHxD (mm) 40 x 40 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 9.5 - 32.5
- Weight (kg) 0.15
- Art. No 102525

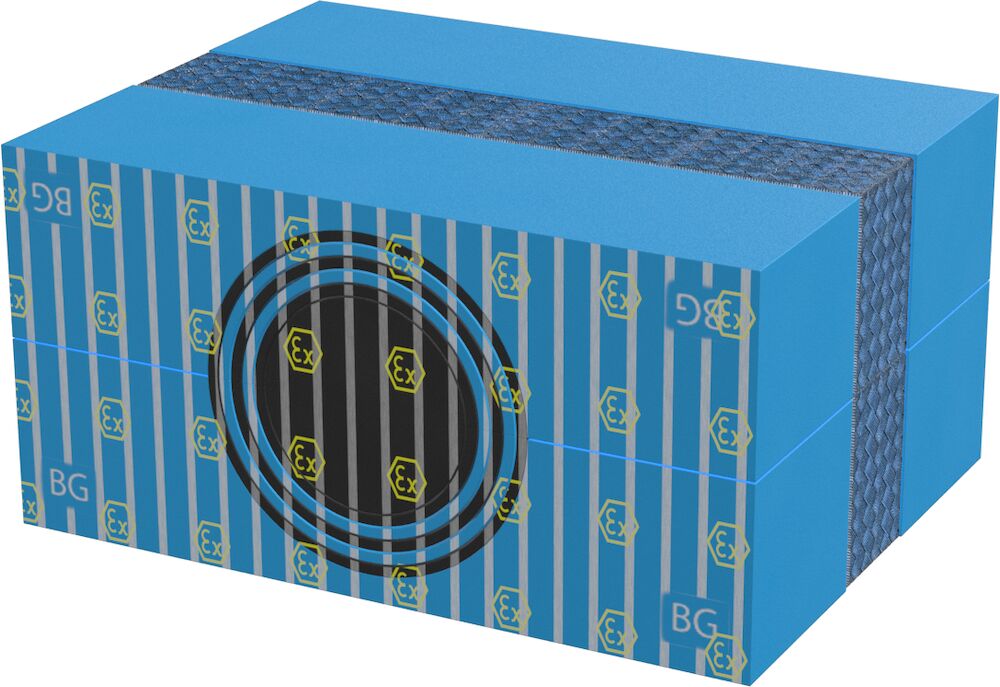

RM 40H80 BG Ex
- External dimensions WxHxD (mm) 40 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 10 - 32
- Weight (kg) 0.35
- Art. No 150592
RM 60 BG B Ex
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.34
- Art. No 102532
RM 60 BG Ex
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.33
- Art. No 102533
RM 60 24-54 BG B Ex
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 24 - 54
- Weight (kg) 0.34
- Art. No 102530
RM 60 24-54 BG Ex
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 24 - 54
- Weight (kg) 0.33
- Art. No 102531
RM 80 BG B Ex
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.44
- Art. No 150599
RM 80 BG Ex
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.7
- Art. No 150598
RM 120 BG B Ex
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 1.4
- Art. No 103301
RM 60 BG B Ex WOC
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.3
- Art. No 109380
RM 80 BG B Ex WOC
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.5
- Art. No 150601
RM 120 BG B Ex WOC
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 1.1
- Art. No 102512
RM 120 BG Ex
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 1
- Art. No 103302
RM 60 BG Ex WOC
- External dimensions WxHxD (mm) 60 x 60 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 28 - 54
- Weight (kg) 0.3
- Art. No 109379
RM 80 BG Ex WOC
- External dimensions WxHxD (mm) 80 x 80 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 48 - 71
- Weight (kg) 0.44
- Art. No 150600
RM 120 BG Ex WOC
- External dimensions WxHxD (mm) 120 x 120 x 60
- Number of cables/pipes 1
- For cable/pipe Ø (mm) 67.5 - 99
- Weight (kg) 1.1
- Art. No 102519
| 标题 | External dimensions WxHxD (mm) | Number of cables/pipes | For cable/pipe Ø (mm) | Weight (kg) | Art. No | |
|---|---|---|---|---|---|---|
| RM 20 BG B Ex | 20 x 20 x 60 | 1 | 4 - 14.5 | 0.04 | 102515 | |
| RM 20 BG Ex | 20 x 20 x 60 | 1 | 4 - 14.5 | 0.04 | 102522 | |
| RM 20w40 BG B Ex | 40 x 20 x 60 | 2 | 3.5 - 16.5 | 0.07 | 102516 | |
| RM 20w40 BG Ex | 40 x 20 x 60 | 2 | 3.5 - 16.5 | 0.08 | 102523 | |
| RM 30 BG B Ex | 30 x 30 x 60 | 1 | 10 - 25 | 0.08 | 102517 | |
| RM 30 BG Ex | 30 x 30 x 60 | 1 | 10 - 25 | 0.08 | 102524 | |
| RM 40 BG B Ex | 40 x 40 x 60 | 1 | 21.5 - 34.5 | 0.14 | 102526 | |
| RM 40 10-32 BG B Ex | 40 x 40 x 60 | 1 | 9.5 - 32.5 | 0.15 | 102518 | |
| RM 40 BG Ex | 40 x 40 x 60 | 1 | 21.5 - 34.5 | 0.14 | 102527 | |
| RM 40 10-32 BG Ex | 40 x 40 x 60 | 1 | 9.5 - 32.5 | 0.15 | 102525 | |
| RM 40H80 BG Ex | 40 x 80 x 60 | 1 | 10 - 32 | 0.35 | 150592 | |
| RM 60 BG B Ex | 60 x 60 x 60 | 1 | 28 - 54 | 0.34 | 102532 | |
| RM 60 BG Ex | 60 x 60 x 60 | 1 | 28 - 54 | 0.33 | 102533 | |
| RM 60 24-54 BG B Ex | 60 x 60 x 60 | 1 | 24 - 54 | 0.34 | 102530 | |
| RM 60 24-54 BG Ex | 60 x 60 x 60 | 1 | 24 - 54 | 0.33 | 102531 | |
| RM 80 BG B Ex | 80 x 80 x 60 | 1 | 48 - 71 | 0.44 | 150599 | |
| RM 80 BG Ex | 80 x 80 x 60 | 1 | 48 - 71 | 0.7 | 150598 | |
| RM 120 BG B Ex | 120 x 120 x 60 | 1 | 67.5 - 99 | 1.4 | 103301 | |
| RM 60 BG B Ex WOC | 60 x 60 x 60 | 1 | 28 - 54 | 0.3 | 109380 | |
| RM 80 BG B Ex WOC | 80 x 80 x 60 | 1 | 48 - 71 | 0.5 | 150601 | |
| RM 120 BG B Ex WOC | 120 x 120 x 60 | 1 | 67.5 - 99 | 1.1 | 102512 | |
| RM 120 BG Ex | 120 x 120 x 60 | 1 | 67.5 - 99 | 1 | 103302 | |
| RM 60 BG Ex WOC | 60 x 60 x 60 | 1 | 28 - 54 | 0.3 | 109379 | |
| RM 80 BG Ex WOC | 80 x 80 x 60 | 1 | 48 - 71 | 0.44 | 150600 | |
| RM 120 BG Ex WOC | 120 x 120 x 60 | 1 | 67.5 - 99 | 1.1 | 102519 |
